LHG XL HP5 Dual chain eXtra Large High Power 27dBi 5GHz CPE/Point-to-Point Integrated Antenna
The LHG XL HP5 is a 5GHz 802.11 a/n wireless device with an integrated dual polarization 27 dBi grid antenna and high TX output power, designed to reach up to 40km in point-to-point setups at full speed.
The grid design ensures protection against wind, and the fact that the antenna element is built into the wireless unit means no loss on cables.

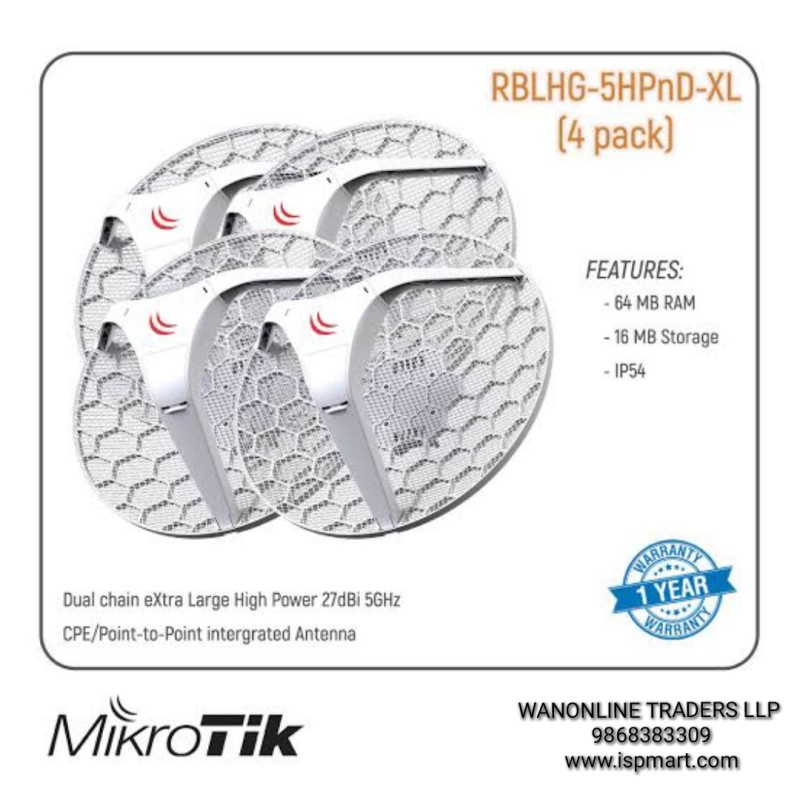

Shipped as a kit of 4 units (RBLHG-5HPnD-XL4pack) - 4 antennas in a single box
We have two versions available.
LHG XL HP5-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.
LHG XL HP5 (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).
Specifications
| Details | |
|---|---|
| Product code | RBLHG-5HPnD-XL |
| Architecture | MIPSBE |
| CPU | AR9344 |
| CPU core count | 1 |
| CPU nominal frequency | 600 MHz |
| Dimensions | Ø 550 x 245 mm; |
| RouterOS license | 3 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 100'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
Powering
| Details | |
|---|---|
| Number of DC inputs | 1 (PoE-IN) |
| Max power consumption | 7 W |
| PoE in | Passive PoE |
| Cooling type | Passive |
| PoE in input Voltage | 10-28 V |
Wireless specifications
| Details | |
|---|---|
| Wireless 5 GHz Max data rate | 300 Mbit/s |
| Wireless 5 GHz number of chains | 2 |
| Wireless 5 GHz standards | 802.11a/n |
| Antenna gain dBi for 5 GHz | 27 |
| Wireless 5 GHz chip model | AR9344 |
| Wireless 5 GHz generation | Wi-Fi 4 |
Ethernet
| Details | |
|---|---|
| 10/100 Ethernet ports | 1 |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, FCC, IC, EAC, ROHS |
| IP | IP54 |
Wireless specifications
| 5 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 6MBit/s | 28 | -96 |
| 54MBit/s | 25 | -80 |
| MCS0 | 28 | -96 |
| MCS7 | 24 | -75 |
Included parts
The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use.
